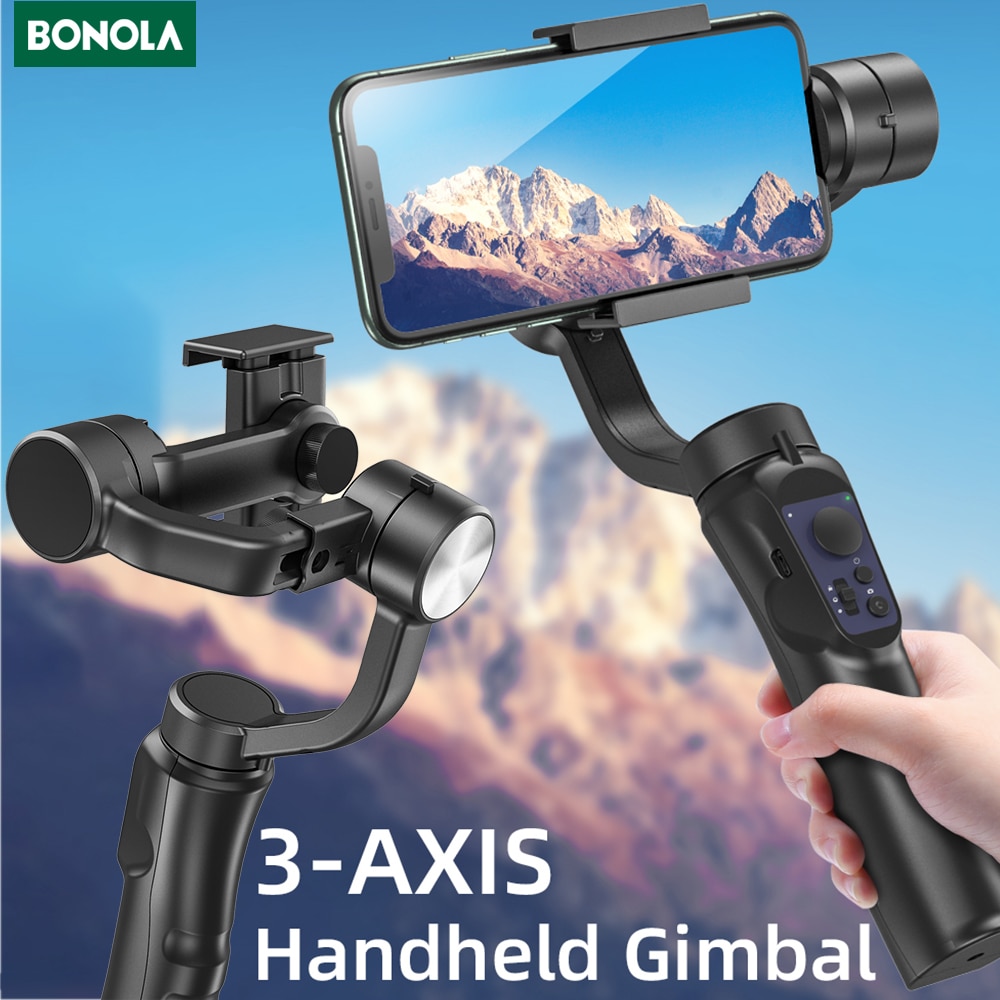

Bonola 3 Axis Handheld Gimbal Stabilizer for IOS/Andriod Smartphone Stabilizer Tripods Video Record Vlog Anti-shake Phone Gimbal

Production Description：

*Working current: 80mA(Minimum value) 120mA (Standard) 300mA(Maximum value)
*Working voltage: 5V
*Working time: 6-8(according to adjusting balance and mobile phone size
* Net product amount 400g

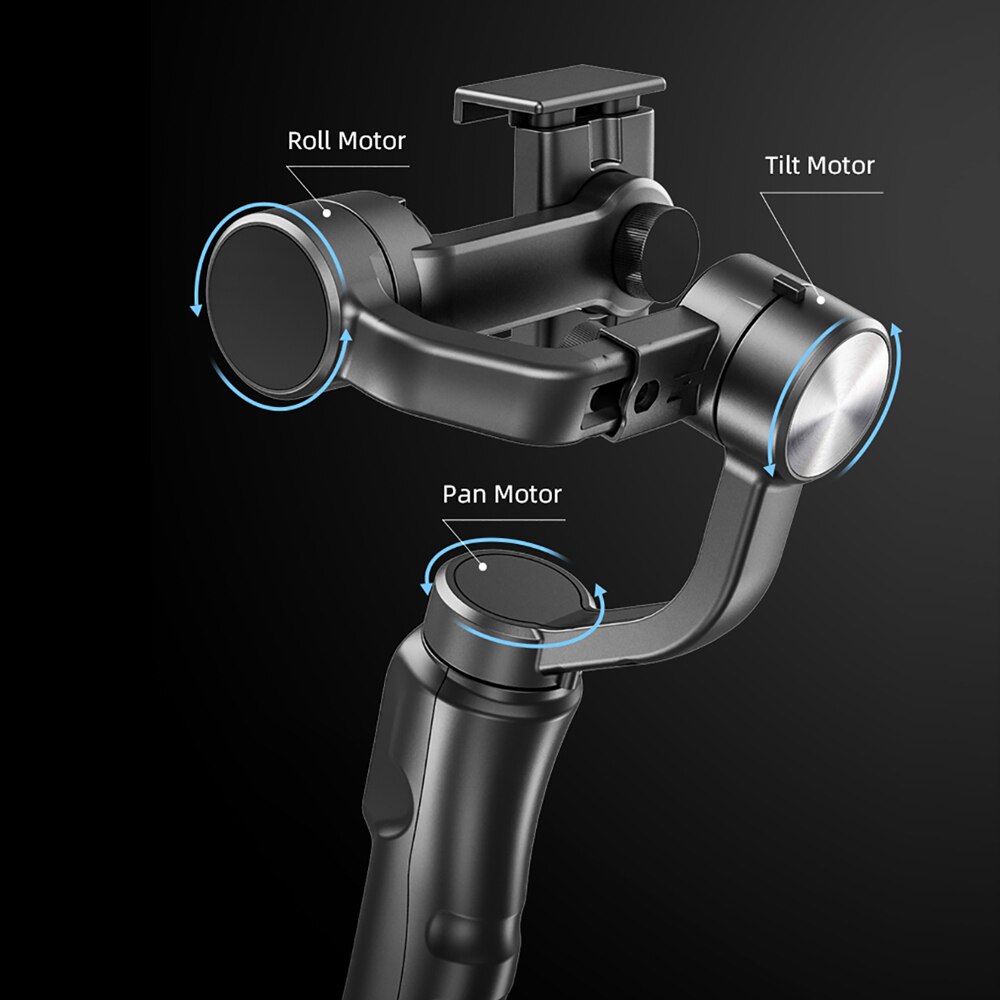

* Tilt axis range: -165(Minimum value) +165(Maximum value)
* Rolling axis range -90(Minimum value) +90(Maximum value)
* Heading axis range:-165(Minimum value) +(Maximum value)
* Applicable models: Smartphone below4.6-6.5 inches. Gopro3/4/5

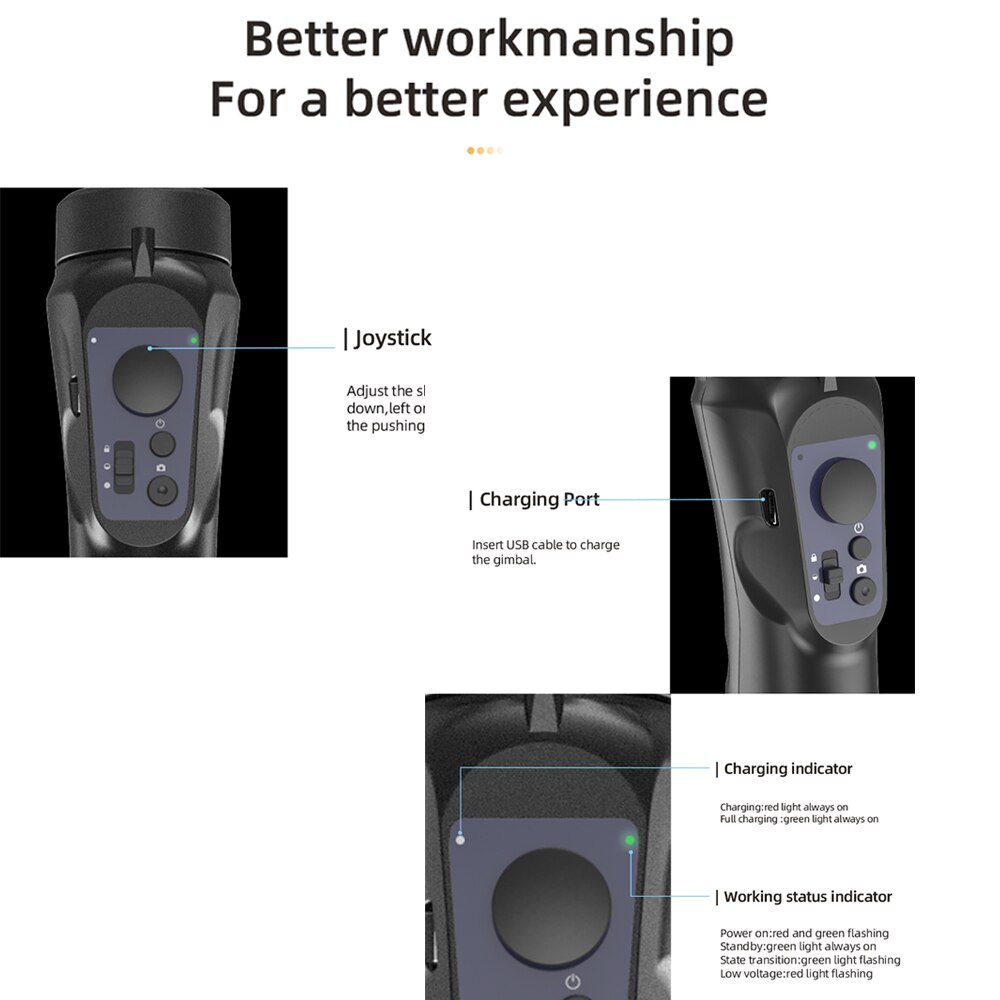

Control panel induction:

●.charging lamp: When Charging ,the red light is always on, and when full, and the green light is always on
●.working lamp: Boot in: traffic lights flashing each other Standby: the green light is always on Status transition: green light flashes Low voltage: red light flashing
●.Description of the lever: Push up and down in the APP camera function can play a role of zooming
(Note: Joystick keys are valid when using the app)
●.direction key: Up, down, left, and right adjustment of shooting angle according to pushing direction
●.Power/M mode: Click the M button to switch between the three working modes; in any state of the phone, double-click the M button to return to the center
●.Shot: After connecting to Bluetooth, click in the phone camera and APP to play pictures and videos

Beginner Mode:

Using the phone’s original camera: install the phone, adjust the balance, turn on the phone, open the Bluetooth and search for gimbal go to connect and pair, click on the phone ’s original ecological camera, adjust the control surface buttons according to the required mode, click the camera button to start recording and taking photo

APP Advanced model:

Download APP: IOS Search Gimbal go pro in APP Store Android search Gimbal go in Google Play(note: please cancel Gimbal go pairing in the Settings of the phone if “connection is broken” after entering the app)Scan the qr code to download the APP

1. Install smart phone: Pull the phone clip of the stabilizer away, and then lift the phone to the side of the motor. Important notes
   Do not turn on the phone without installing it！
2. Center of gravity adjustment of mobile phone: When the horizontal center of gravity tilts downward due to the excessive weight of the mobile phone, loosen the balance shaft adjustment knob, and slide the telescopic arm left and right to adjust the balance center of gravity, so that the mobile phone returns to the horizontal line, and finally ensure that the stabilizer works normally (Important notes:
   Proper balance adjustment ensures better power saving during operation When the balance is not fully adjusted, the stabilizer cannot work normally increase the power consumption of the moto- For example, the motor is weak and the mode light flashes abnormally. Moreover, it will  greatly affect the torque output of the motor)
3. Turn phone gimbal stabilizer on and off Press and hold the power button for about 3 seconds to turn on the power and the stabilizer starts to work; press and hold for about 3 seconds again to turn off the power.
   Mode switch: The default full close mode Click the M key to switch to half follow mode Click the M button again to switch to full I follow mode. (Note: In the three modes, you can manually i adjust the angle of the phone; you can also push the joystick to change the orientation of the phone, and adjust it up, down, left and right.)
