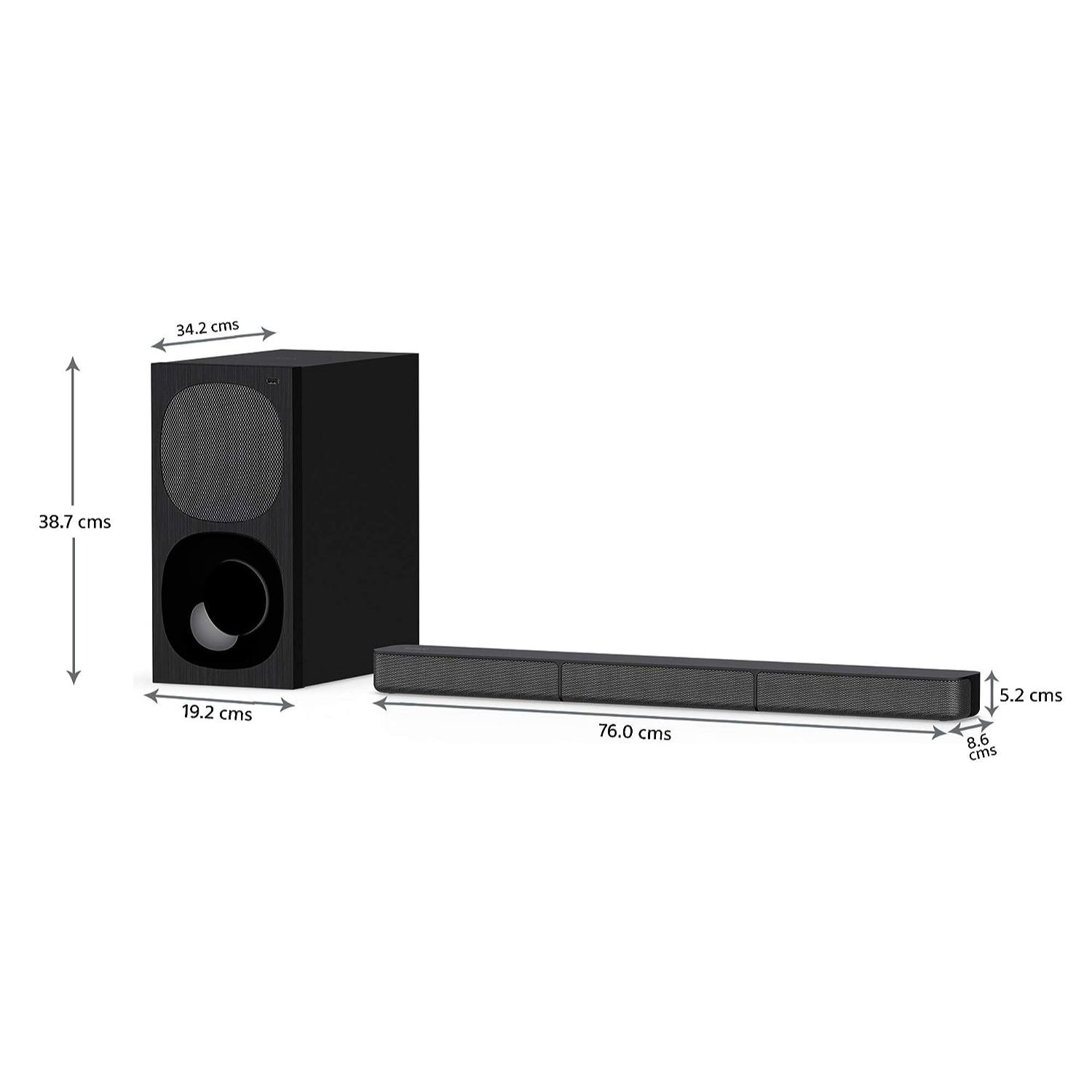

Size & Weight

MAIN UNIT SIZE – BODY ONLY (W X H X D)
760 x 52 x 86 mm
MAIN UNIT WEIGHT – BODY ONLY
2.0 kg
SUBWOOFER SIZE (W X H X D)
192 x 387 x 342 mm
SUBWOOFER WEIGHT
6.9 kg

Amplifier

AMPLIFIER TYPE
Digital Amplifier, S-Master
AMPLIFIER CHANNELS
5.1ch
POWER OUTPUT (TOTAL)
400 W

Subwoofer

SUBWOOFER TYPE
Wired

Interface

INPUT AND OUTPUT TERMINALS
Optical-audio input, Analogue-audio input (stereo mini), USB Type A, FAT32/NTFS
BLUETOOTH®
RX (receiver)
BLUETOOTH® VERSION
5.0

HDMI

NUMBER OF INPUT/OUTPUT
Input/Output: 0/1 (ARC)
BRAVIA® SYNC
Yes
HDMI CEC
Yes

Audio formats

OPTICAL INPUT
Dolby Digital, Dolby Dual mono, LPCM 2ch
USB
WAV, MP3, WMA
BLUETOOTH® (RECEIVER)
SBC

Sound Function

SOUND MODE
Auto Sound, Cinema, Music, Standard
SOUND EFFECT
Night Mode, Voice Mode, Voice Mode (level)

Speaker Layout

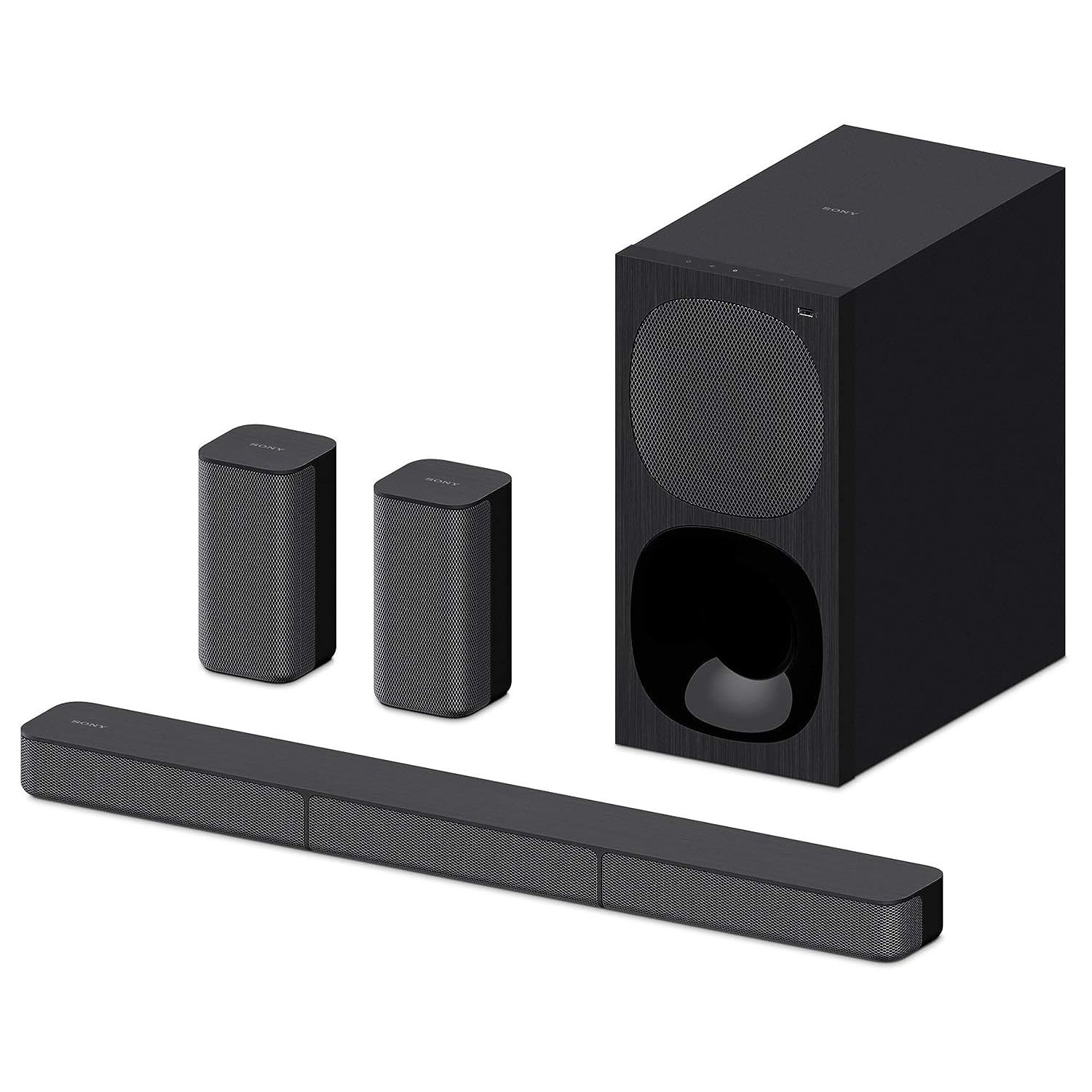

SPEAKER STRUCTURE
5.1 ch (Wired Subwoofer)
BAR SPEAKER
1 (SS-S20R)
SUBWOOFER
1 (SA-WS20R)
REAR SPEAKER
2 (SS-SS20R)

Details

POWER CONSUMPTION
40 W
WALL-MOUNTABLE
No

What's In The Box

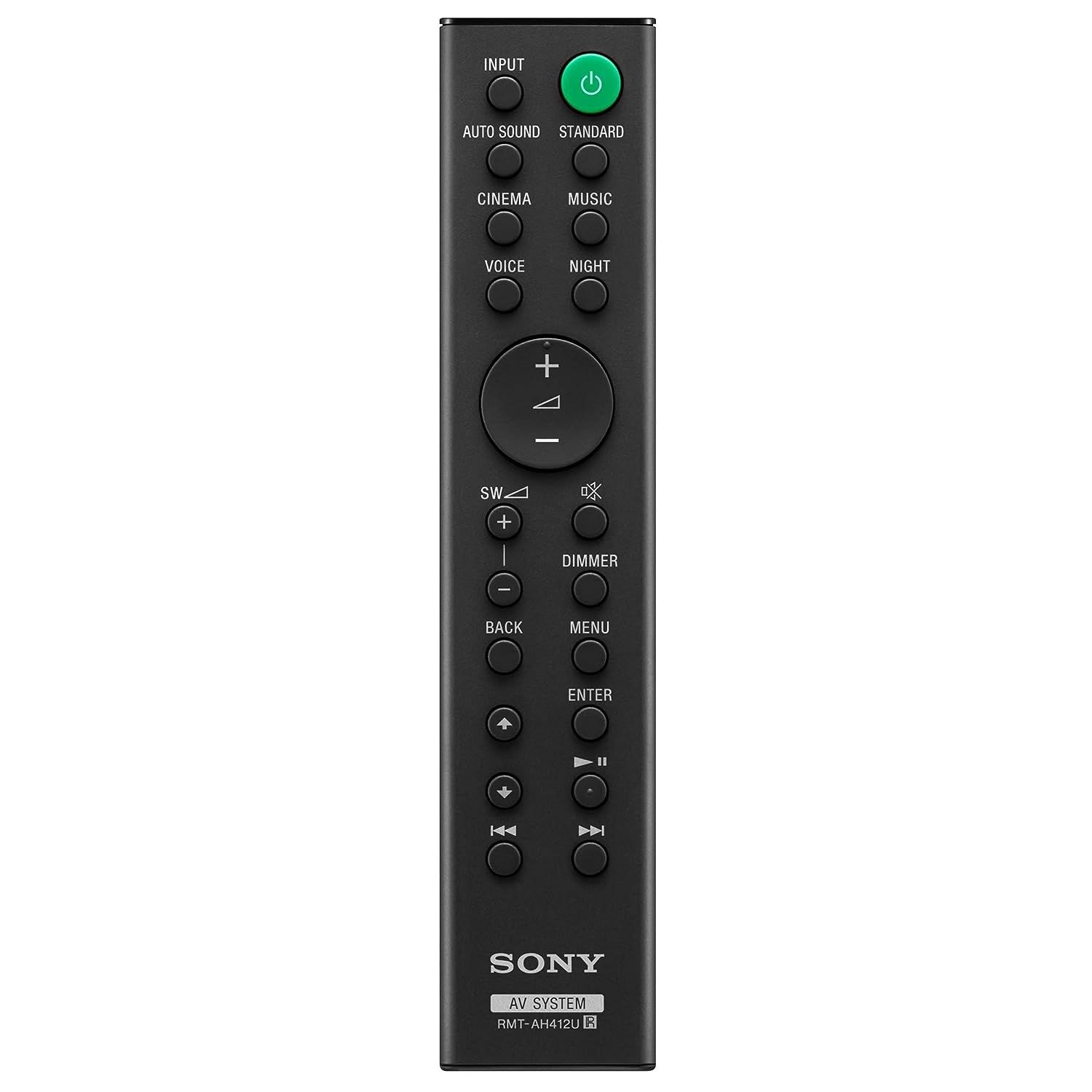

  • Remote Control
  • Batteries for remote commander
  • Audio Cable (MINI -MINI)
  • AC Cord: Yes
  • Warranty Card

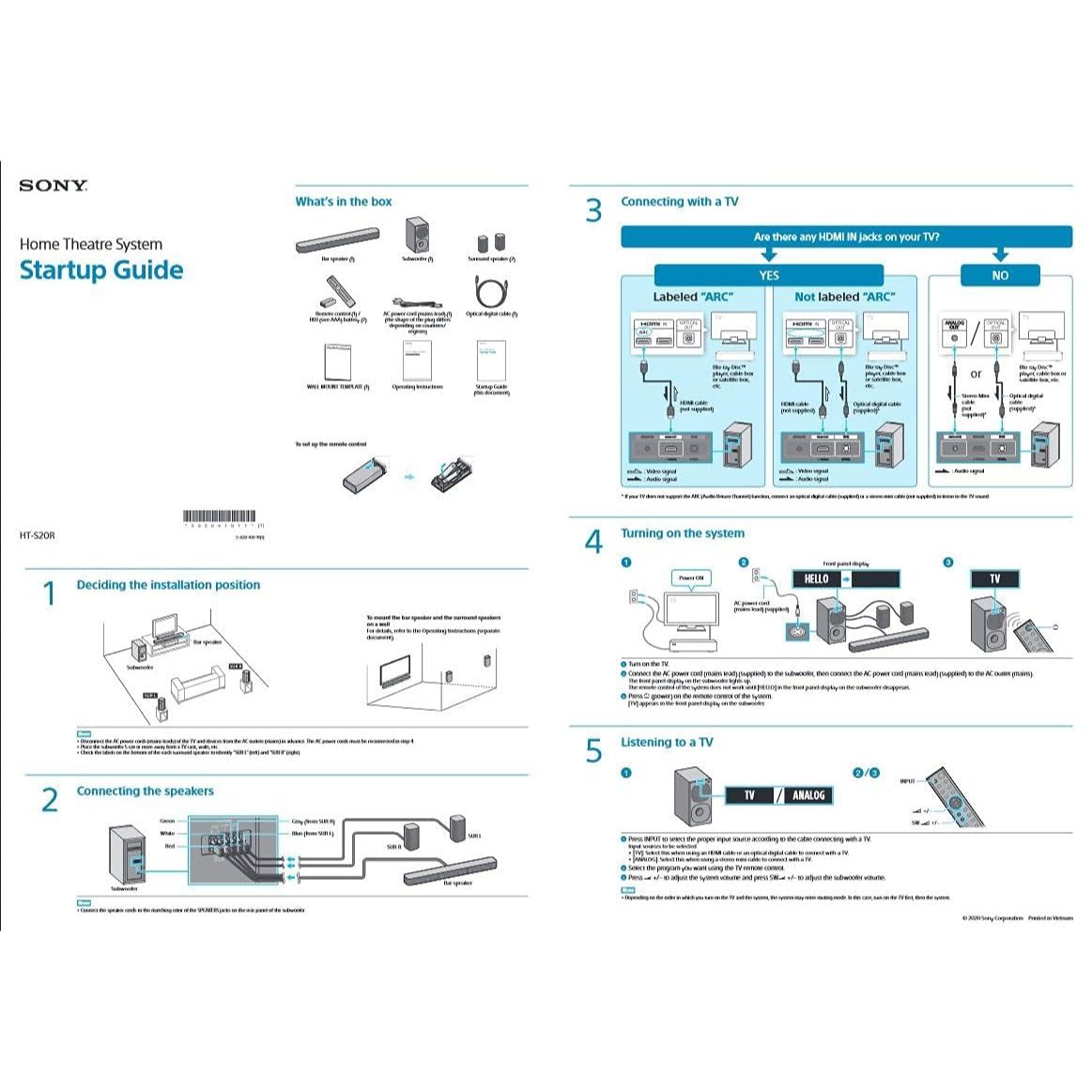

  • Quick Setup Guide
  • Instruction Manual
Placeholder

FEATURES

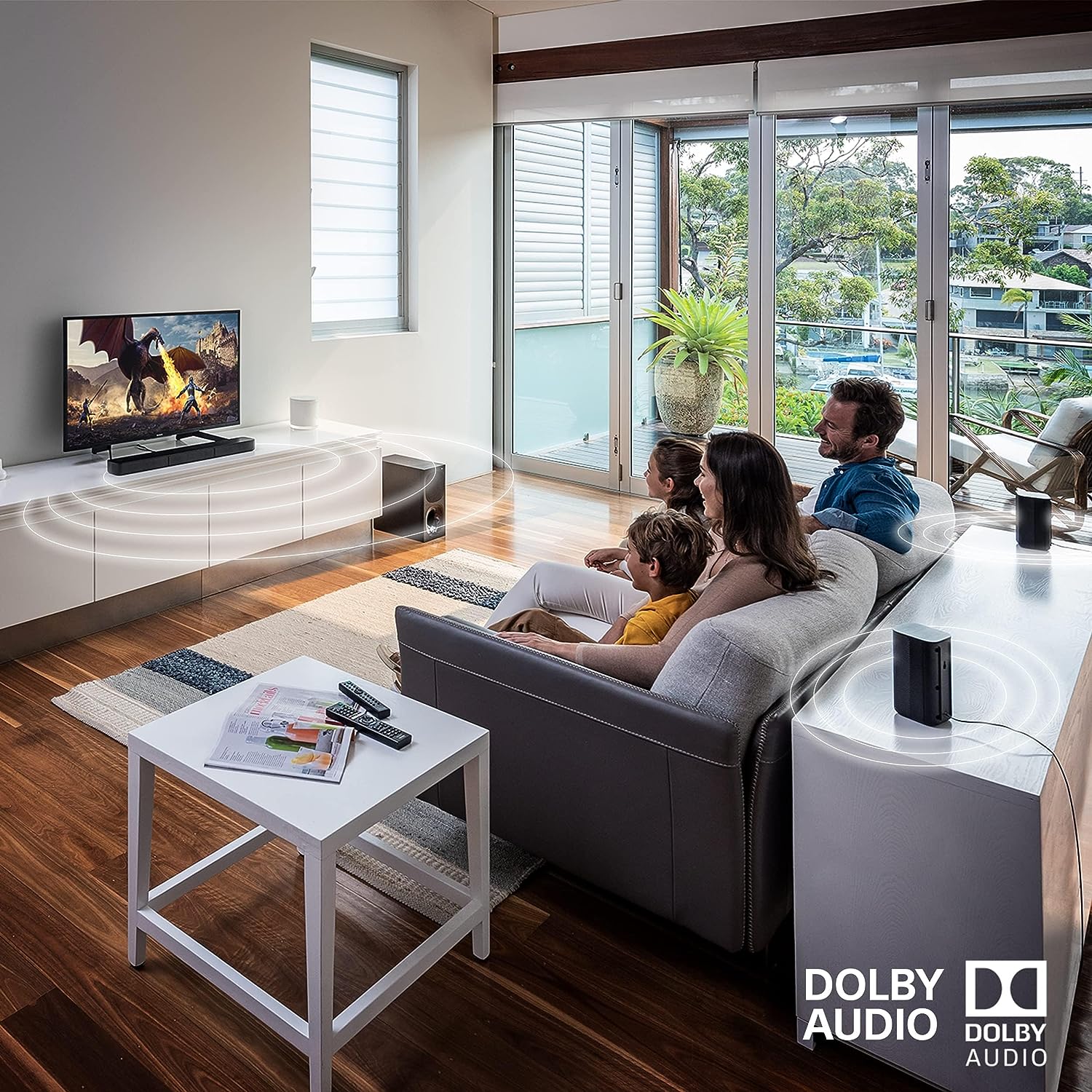

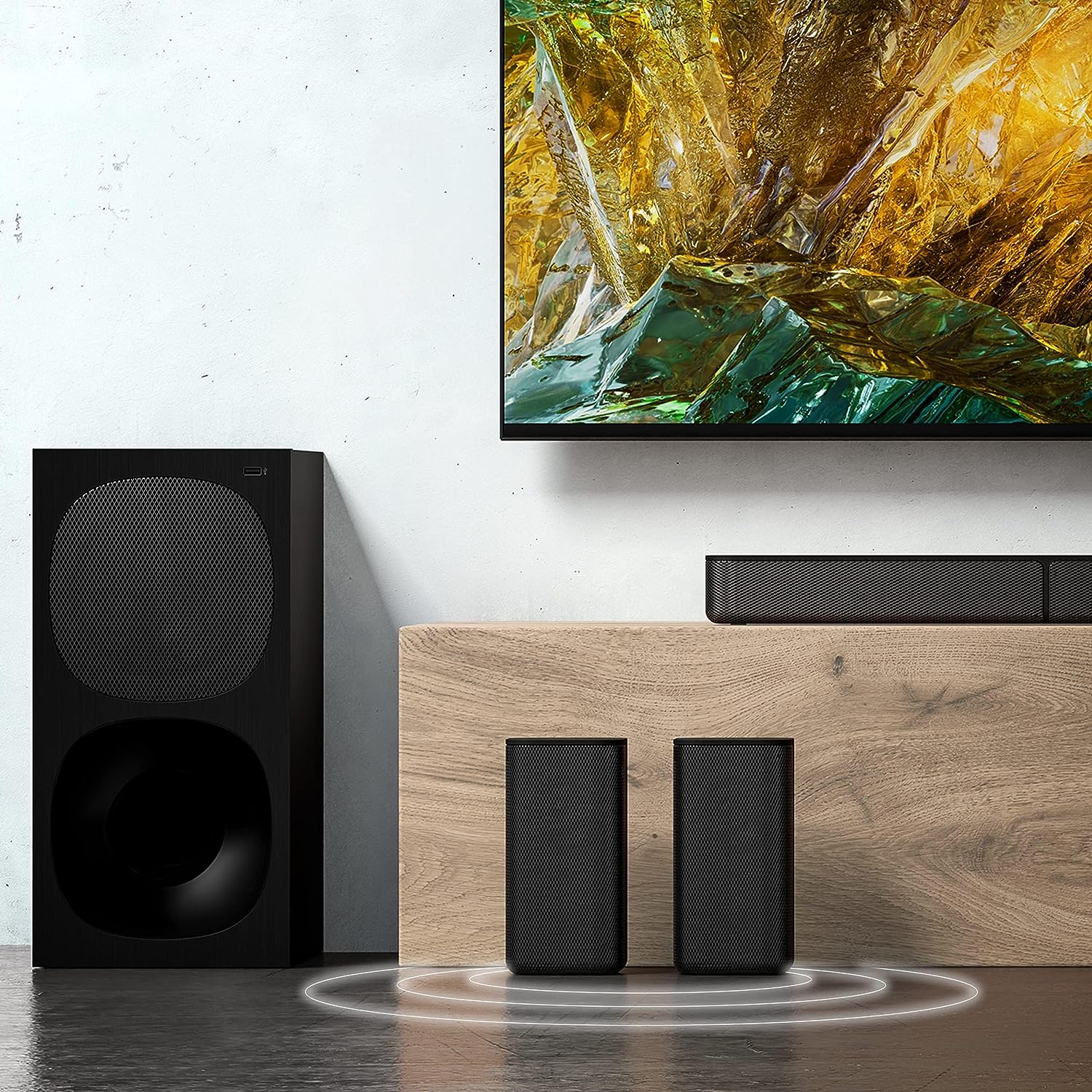

Experience 5.1-ch real surround sound

Give movies the soundtrack they deserve with 5.1 channels of real surround sound. Rear speakers and an external subwoofer work with a 3ch soundbar to deliver dynamic, cinematic sound.

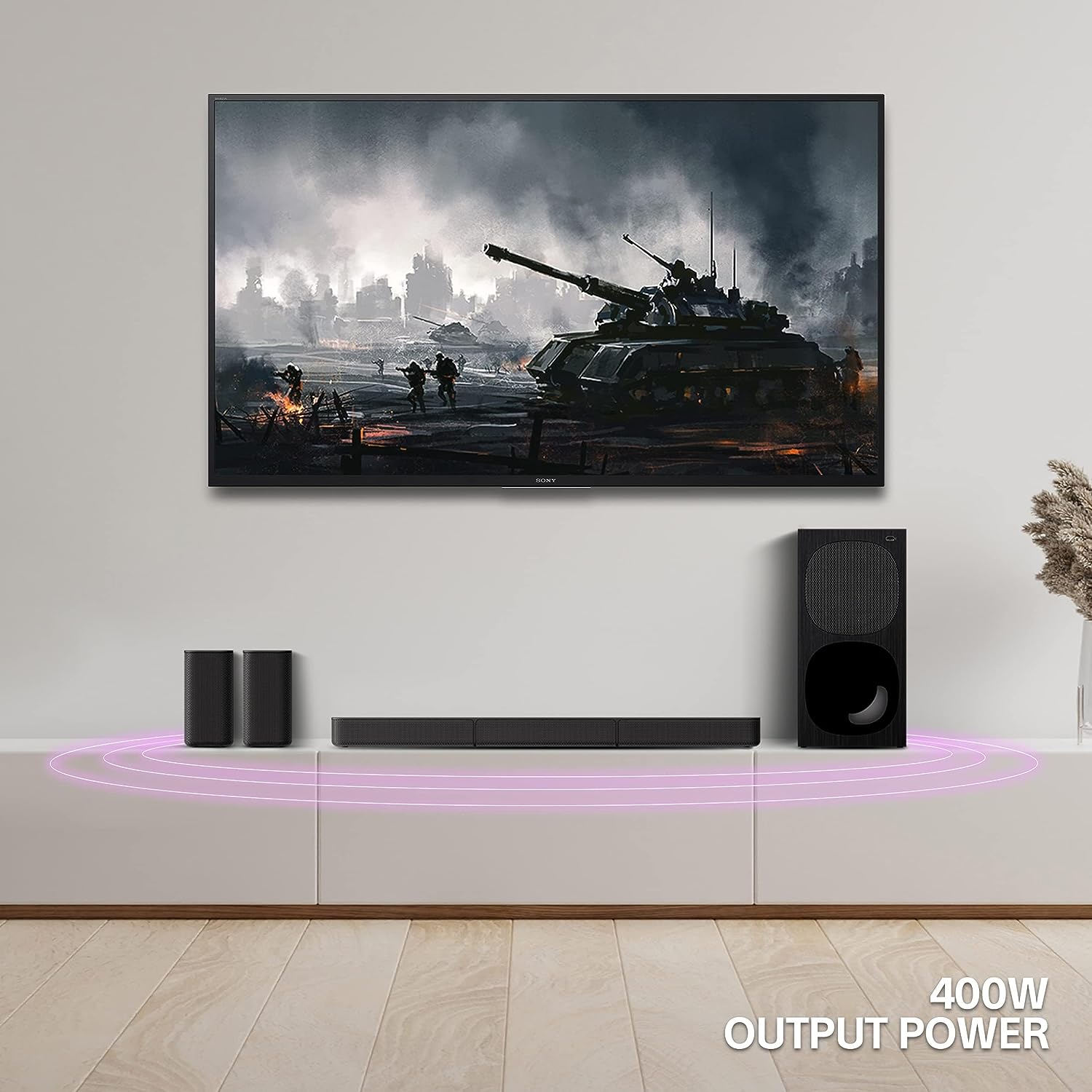

400-W total power output

A total power output of 400 W helps bring every movie scene to life.

Dolby® Digital technology

Enjoy dramatic, high-quality surround sound from 5.1ch soundbar, separate audio channels with Dolby® Digital.

Choose the perfect setting

A button for every sound—choose the mode that's right for whatever you're watching or listening to, including Auto, Standard, Cinema and Music. You can also select Night and Voice modes and use subwoofer control to fine-tune your viewing experience.

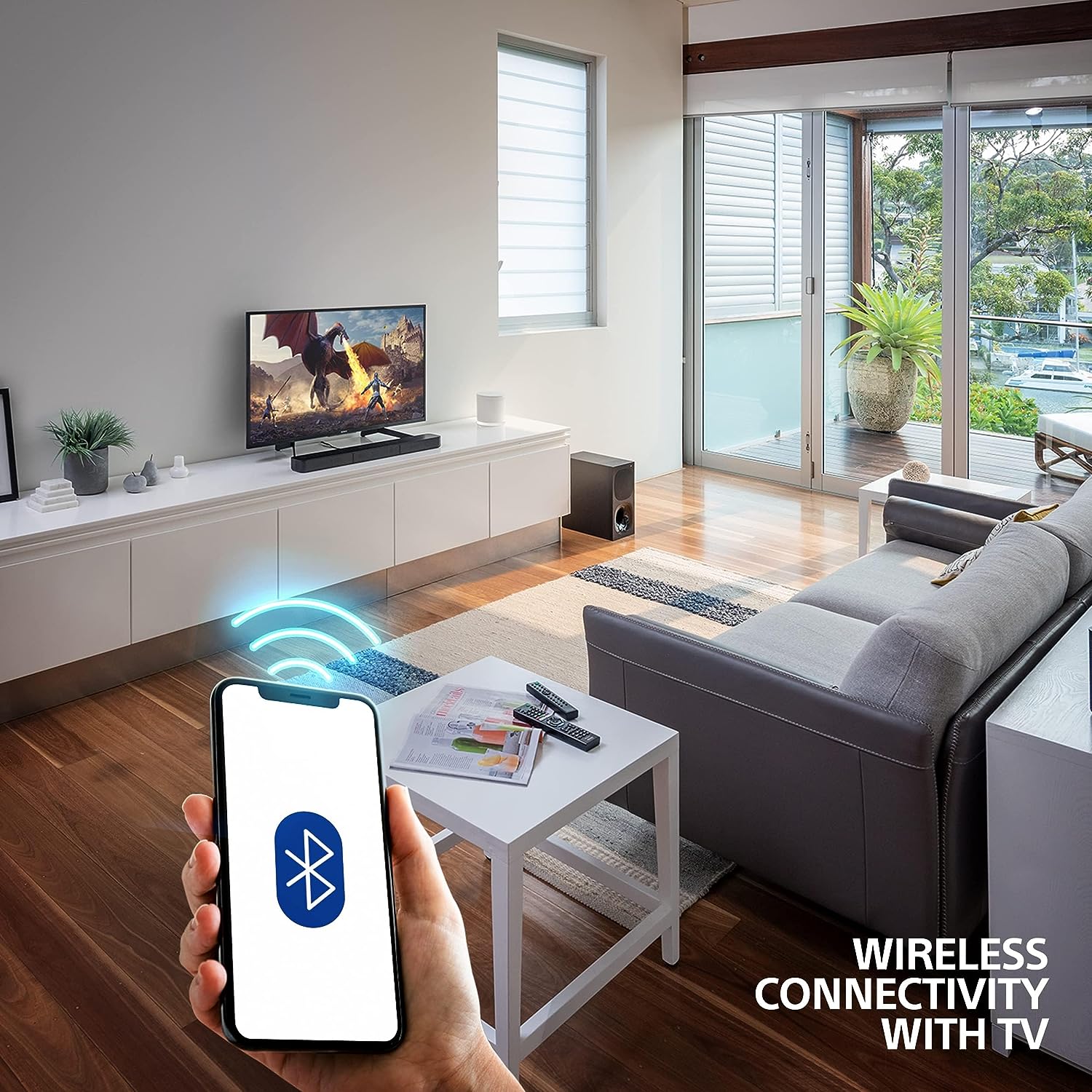

Play the music you love

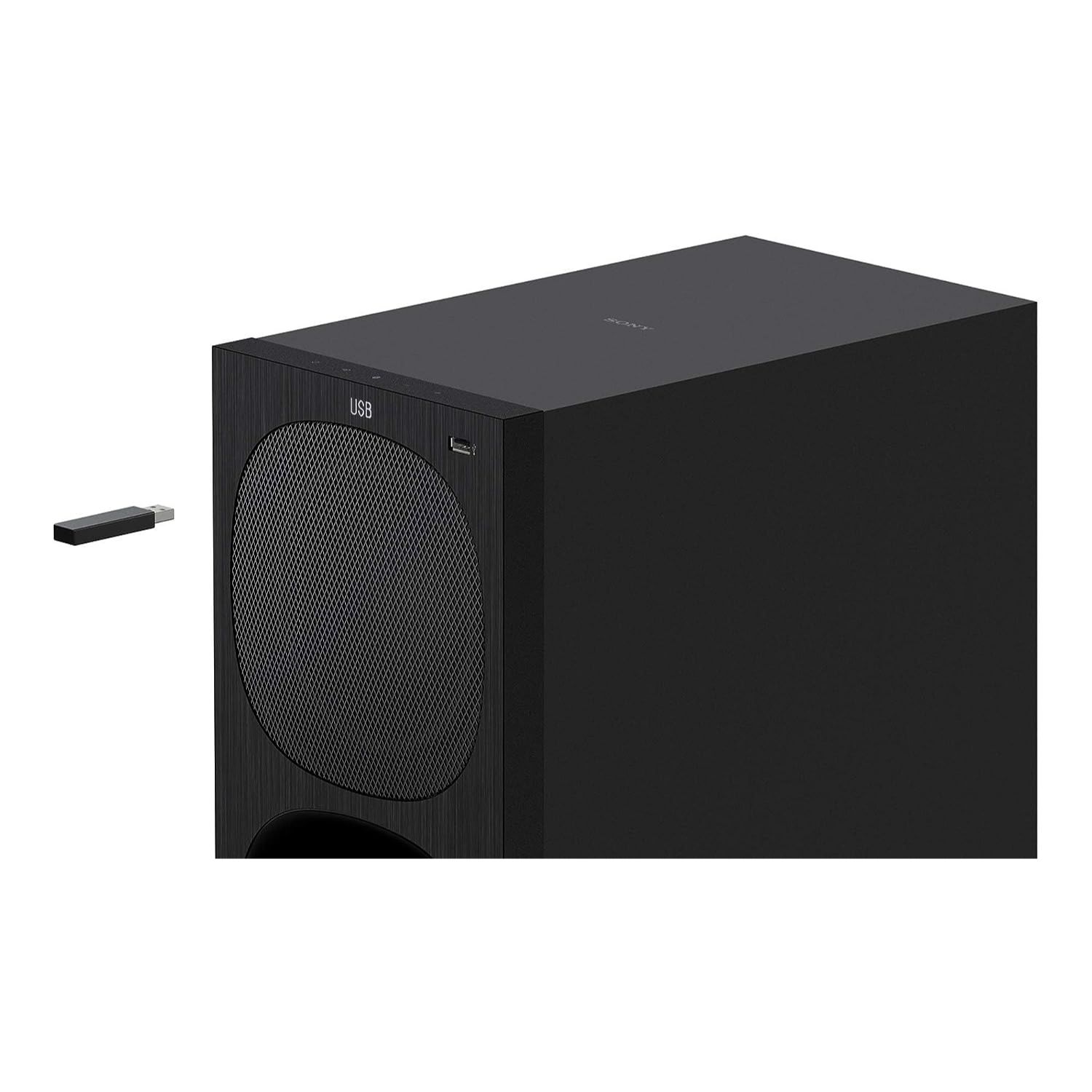

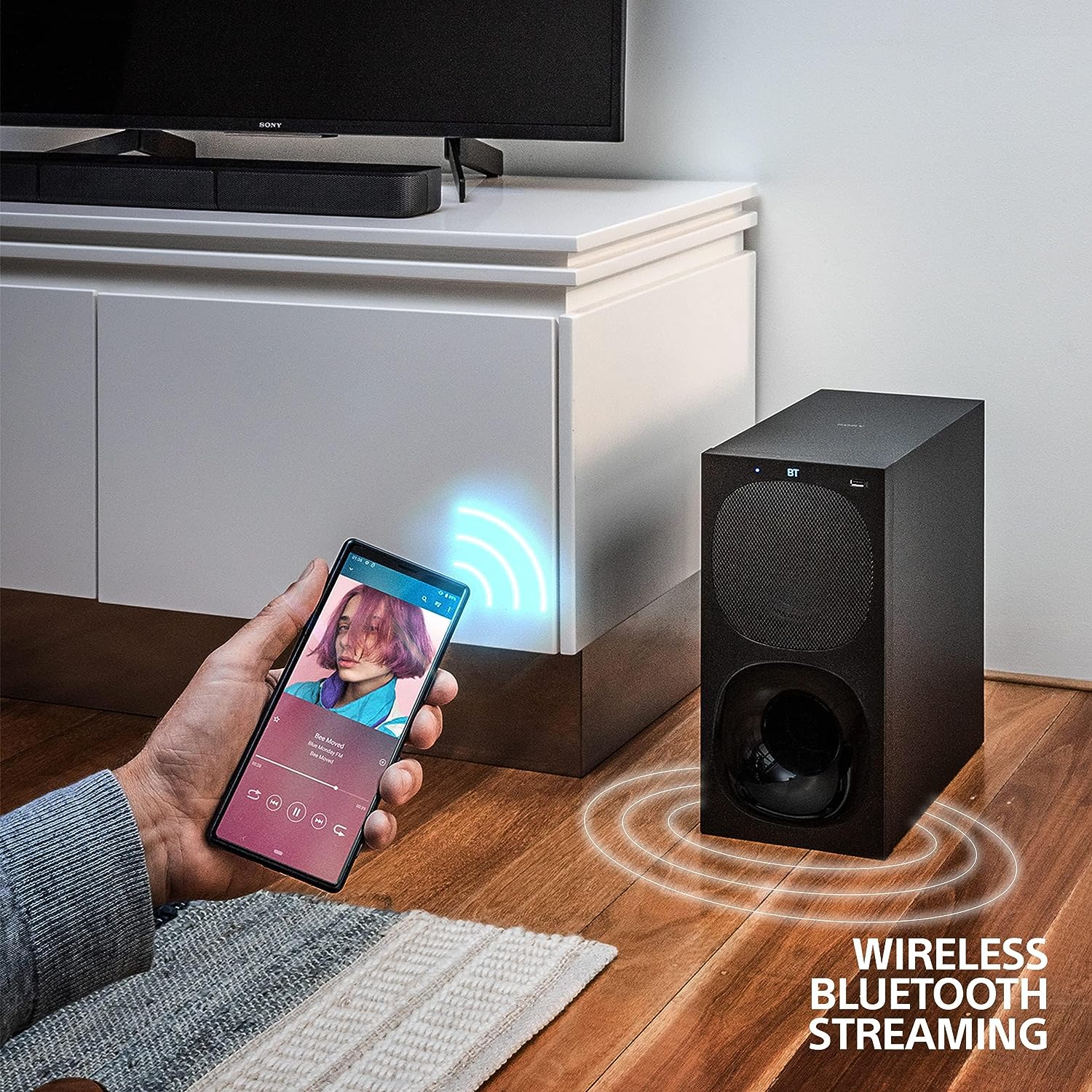

It's not all about movies and TV—you can easily play your favourite music through your soundbar too. Use the USB port to plug and play music from a USB memory stick, or use Bluetooth® connectivity to stream music wirelessly from your smartphone.

Set up in seconds

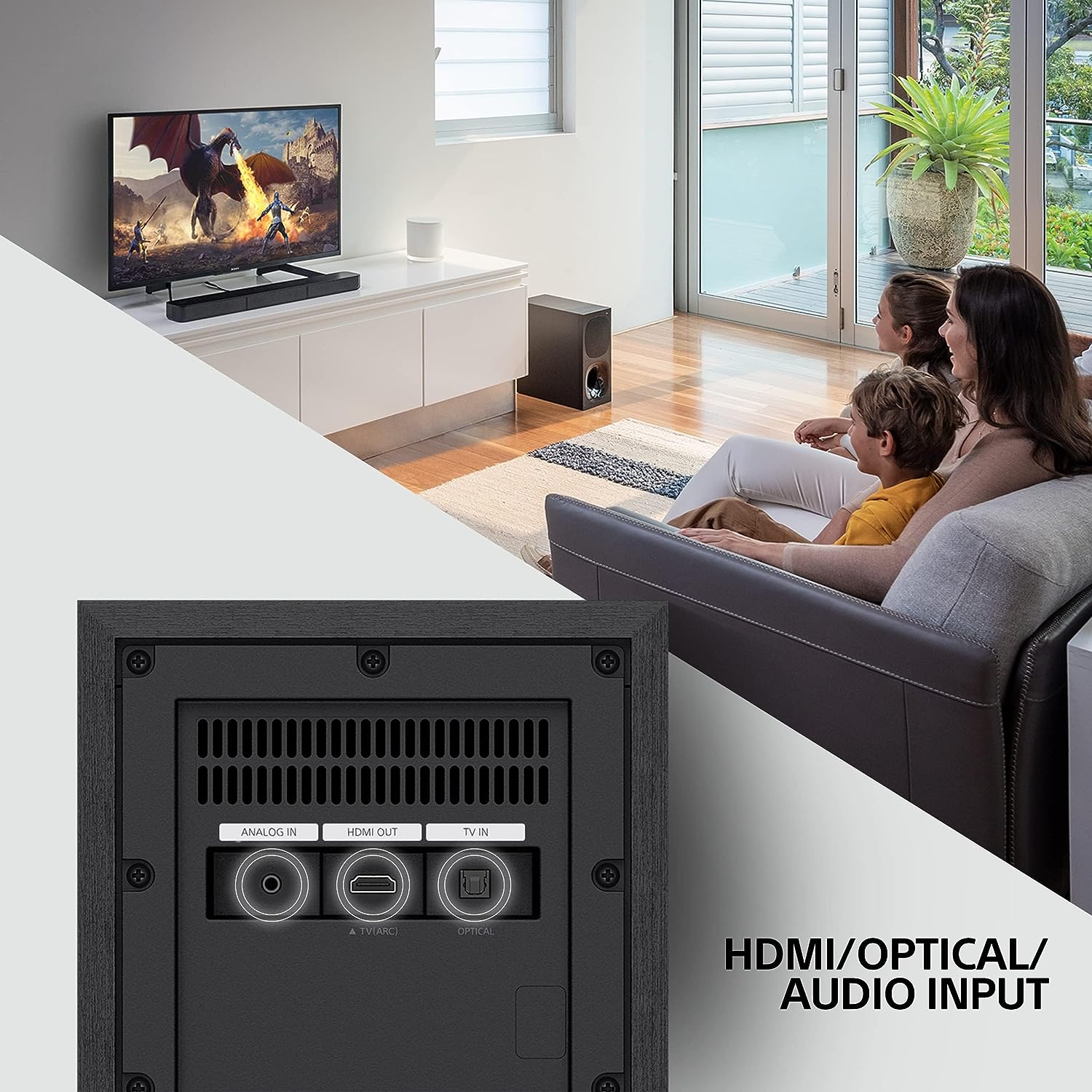

The HT-S20R is almost ready-to-go straight out of the box. Simply plug it in, wire up your main bar speaker and rear speakers via colour-coded connections, position your wired subwoofer and rear speakers, and enjoy 5.1 channels of real surround sound. HDMI ARC lets you connect to compatible TVs with a single cable, reducing cable clutter. TV not compatible with HDMI ARC? Enjoy high-quality sound for movies and more when you connect to the optical input. If HDMI ARC and the optical input aren't an option, simply connect your TV using the analogue input.
